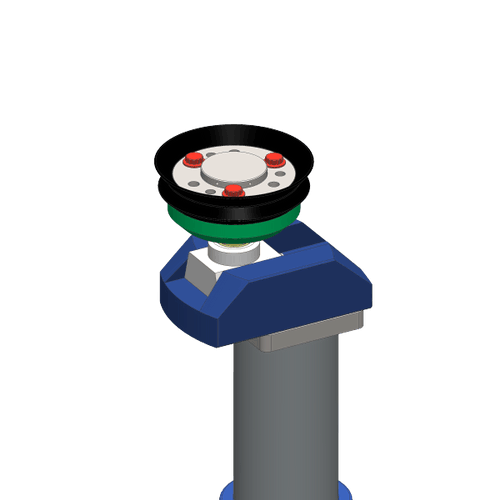

XY adjustment is achieved by sliding the end effector along a dovetail groove in blue offset arm.

End effector is locked by tightening red bolts and then rotating upper head to tighten threaded yellow shaft.

Position of an Acculoc6 end effector being verified automatically with a spindle probe.

Verifiable Positioning

Most existing flexible tooling systems don't have lockable end effectors, rendering them impossible to verify with automated methods like spindle probes.

The only way to verify positions on traditional systems is by measuring each one manually. AccuLoc6 end effectors are adjusted to required positions and locked, enabling accurate verification to be performed automatically with spindle probes and coordinate measuring machines.

Position Locking

Automatic Verification

Absolute Accuracy
